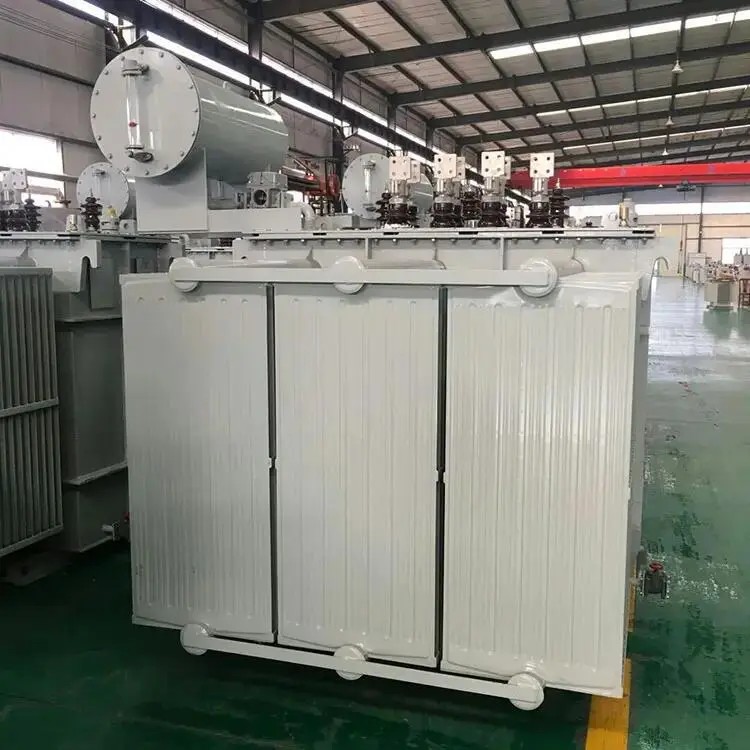

Oil-immersed transformers have cylindrical low-voltage windings with copper foil wound around the shaft, while high-voltage windings have a multi-layer cylindrical structure. The iron core and windings have self-locking lock nuts for non-suspended structure. The oil is vacuum dried, and the oil tank uses a corrugated sheet with a breathing function to compensate for temperature changes. The corrugated sheet isolates the oil from the outside world, reducing insulation performance. This reduces maintenance costs and extends transformer service life.

Product Advantages

It adopts radiator oil tank of corrugated shteet type or expansion type.

As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air,the oil ageing is retarded, thus prolonging the service life of transformer.

The no-load loss of Model S10-M is 20% lower thanthat of Model S9-M,and S11-M is 30% lower than S9-M.

Industry-Specific Attributes

Other Attributes

Packaging and Delivery

Product Paramenters
