JINSHIDA PRODUCTS
2. Structure is optimized to withstand short circuits and lightning strikes.
3. Protection features include flame retardancy, moisture resistance, anti-fouling, and low noise.
4. Wide Application: Suitable for multi-story buildings, airports, stations, ports, power plants, and distribution centers, particularly in environments with stringent fire protection requirements.
Our oil-type transformers are an essential component of power supply and distribution systems in industrial, mining, and civil buildings, efficiently converting 10(6)kV or 35kV network voltage to usable 230/400V bus voltage. These transformers, designed for AC 50(60) Hz, have a maximum rated capacity of 2500kVA and provide a variety of installation options, including indoor, outdoor, and pole-mounted configurations for capacities up to 315kVA. They perform consistently in a variety of environmental conditions and at altitudes up to 1000 meters.
Visit our factory store and take a free tour of the manufacturing facility. We accept bulk orders at competitive prices, and our facility maintains inventory for quick delivery. Our customer service team is available online 24/7, and we offer ODM/OEM services to meet your specific requirements.

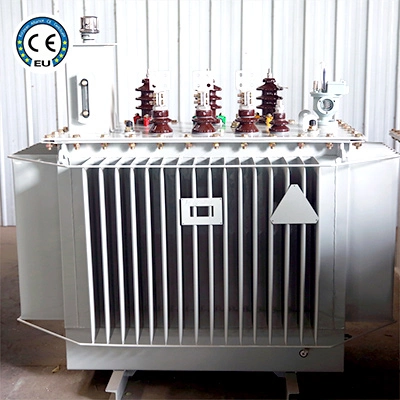

Distribution Transformer | Oil Transformer | 1000KVA | 2000KVA | 3150KVA
Installation requirements
1. The foundation track of the transformer should be level, and the oil pillow side should have a slope of 1-1.5%.
2. The transformer should be reinforced.
3. The primary and secondary leads of the transformer should not stress the bushing.
4. The transformer shell is firmly connected to the neutral point and grounding device to form a trinity of 5. 800KVA (gas relay installed).
Product Advantages
It adopts radiator oil tank of corrugated shteet type or expansion type.
As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air,the oil ageing is retarded, thus prolonging the service life of transformer.
The no-load loss of Model S10-M is 20% lower thanthat of Model S9-M,and S11-M is 30% lower than S9-M.
Industry-Specific Attributes
Other Attributes
Packaging and Delivery
Product Paramenters
Customized Various Models
Product Process
Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
Certificate
Packing and Delivery
